+ € 2,24 per meter copper surcharge (excl. btw)
How the copper surcharge worksNot in stock — delivery in 2–3 weeks

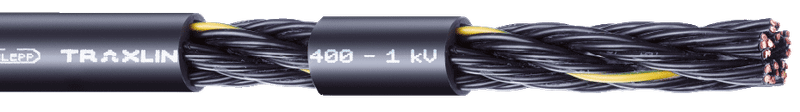

The Tsubaki Kabelschlepp POWER 400 5G4² is an unshielded power cable featuring 5 conductors with a cross-section of 4 mm². It is constructed with PP conductor insulation and a durable black PVC outer jacket. Designed for dynamic continuous motion, it functions reliably at a minimum bending radius from 7.5 x Ø and handles a rated voltage of 0.6/1.0 kV (UL 1.0 kV).
- Number of cores
- 5
- Cross-section
- 4 mm²
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The Tsubaki Kabelschlepp POWER 400 5G4² is an unshielded power cable featuring 5 conductors with a cross-section of 4 mm². It is constructed with PP conductor insulation and a durable black PVC outer jacket. Designed for dynamic continuous motion, it functions reliably at a minimum bending radius from 7.5 x Ø and handles a rated voltage of 0.6/1.0 kV (UL 1.0 kV).
Ideal for use in cable carriers, this flexible cable supports up to 4 million motion cycles. It operates within a temperature range of -5 °C to +80 °C and offers excellent resistance to flame, oil, UV, and ozone. The cable complies with various international standards, including cURus AWM Style 2570, EN 60332-1-2, and UL 1581 VW1.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
45243
Delivery in 2-3 weeks
€ 4,92per meter · excl. btw
+ € 2,24 per meter copper surcharge
- Secure online payment
- Free shipping from € 250,00
- Technical support
How does the copper surcharge work?
Cable prices are based on a fixed copper base. Because the copper price moves daily, we charge the difference with the current DEL quotation separately as a copper surcharge. That keeps the cable price stable and shows exactly what you pay for copper.
- Copper weight
- 0.2 kg/m
- DEL quotation
- 1258.23 €/100 kg · 2026-08-24
- Purchase costs
- 12.46 €/100 kg
- Copper base
- 150 €/100 kg
Calculation
copper weight (kg/m) × ((DEL + purchase costs) − copper base) ÷ 100
The surcharge is not added to the cable price, but listed separately on the order and invoice. The quotation on the day of dispatch applies.
Source: Westmetall DEL quotationSpecifications
| Brand | Tsubaki Kabelschlepp |
|---|---|
| Series | Power |
| Category | Flexible cables |
| Number of cores | 5 |
| Cross-section | 4 mm² |
| Copper weight | 0.2 kg/m |
| Weight | 287 kg/km |
| Rated voltage | 600/1000 V |
| Temperature range | -5 tot 80 °C |
| Sheath material | PVC |
| Insulation | PP |
| Screening | false |
| Colour | Black |
| Applications | Kabelrupsen |
| Sales unit | meter |
| Warranty | 24 months |
