+ € 8,61 per meter copper surcharge (excl. btw)
How the copper surcharge worksNot in stock — delivery in 2–3 weeks

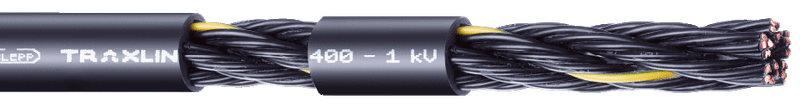

The Tsubaki Kabelschlepp POWER 400 1 kV 5G16² is a high-performance unshielded flexible cable designed for demanding mobile applications. It features 5 cores with a cross-section of 16 mm², class 6 conductors, and PP insulation, housed in a robust black PVC outer sheath. Built to withstand continuous motion, it guarantees reliable operation up to 4 million bending cycles within a temperature range of -5 °C to +80 °C at a rated voltage of 0.6/1.0 kV.
- Number of cores
- 5
- Cross-section
- 16 mm²
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The Tsubaki Kabelschlepp POWER 400 1 kV 5G16² is a high-performance unshielded flexible cable designed for demanding mobile applications. It features 5 cores with a cross-section of 16 mm², class 6 conductors, and PP insulation, housed in a robust black PVC outer sheath. Built to withstand continuous motion, it guarantees reliable operation up to 4 million bending cycles within a temperature range of -5 °C to +80 °C at a rated voltage of 0.6/1.0 kV.
This versatile power cable offers excellent resistance to UV, ozone, and oil according to DIN EN 60811-2-1. Furthermore, it is flame-retardant in compliance with EN 60332-1-2 and UL 1581 VW1, and features a cURus approval (AWM Style 2570). Its high-grade construction complies with numerous standards, making it a reliable solution for industrial power applications.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
45273
Delivery in 2-3 weeks
€ 20,07per meter · excl. btw
+ € 8,61 per meter copper surcharge
- Secure online payment
- Free shipping from € 250,00
- Technical support
How does the copper surcharge work?
Cable prices are based on a fixed copper base. Because the copper price moves daily, we charge the difference with the current DEL quotation separately as a copper surcharge. That keeps the cable price stable and shows exactly what you pay for copper.
- Copper weight
- 0.768 kg/m
- DEL quotation
- 1258.23 €/100 kg · 2026-08-24
- Purchase costs
- 12.46 €/100 kg
- Copper base
- 150 €/100 kg
Calculation
copper weight (kg/m) × ((DEL + purchase costs) − copper base) ÷ 100
The surcharge is not added to the cable price, but listed separately on the order and invoice. The quotation on the day of dispatch applies.
Source: Westmetall DEL quotationSpecifications
| Brand | Tsubaki Kabelschlepp |
|---|---|
| Series | Power |
| Category | Flexible cables |
| Number of cores | 5 |
| Cross-section | 16 mm² |
| Copper weight | 0.7680 kg/m |
| Weight | 1091 kg/km |
| Rated voltage | 1000 V |
| Temperature range | -5 tot 80 °C |
| Sheath material | PVC |
| Insulation | PP |
| Screening | Nee |
| Colour | Black |
| Sales unit | meter |
| Warranty | 24 months |
