Wisman Group

Tsubaki Kabelschlepp · Power

Flexible cable - Tsubaki Kabelschlepp - Power - 4G10mm²

45803Delivery in 2-3 weeks
€ 17,80excl. VAT · per metre

€ 21,54 incl. VAT

+ € 5,89 per metre copper surcharge (excl. VAT)

How the copper surcharge works

Not in stock — delivery in 2–3 weeks

Free and without obligation · Reply within 3 hours on working days
Datasheet

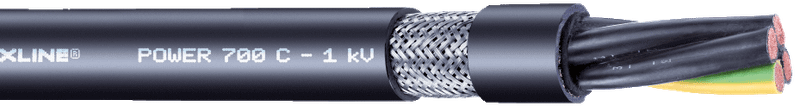

This high-quality flexible cable features 4 cores with a 10 mm² cross-section, PP/9Y core insulation, and a durable black PUR outer sheath. Equipped with effective shielding, it offers reliable protection against electromagnetic interference and handles a nominal voltage of 0.6/1.0 kV smoothly.

Number of cores
4
Cross-section
10 mm²
  • Ordered before 15:00, shipped the same day
  • Datasheet and STEP file instantly available

Product description

This high-quality flexible cable features 4 cores with a 10 mm² cross-section, PP/9Y core insulation, and a durable black PUR outer sheath. Equipped with effective shielding, it offers reliable protection against electromagnetic interference and handles a nominal voltage of 0.6/1.0 kV smoothly.

Built for dynamic applications, it performs efficiently in temperature ranges from -35 °C to 90 °C. The cable is halogen-free, UV-resistant, oil-resistant, and flame-retardant according to strict standards including UL 1581 VW1, EN 60332-1-2, and cURus AWM Style 20234.

How does the copper surcharge work?

Cable prices are based on a fixed copper base. Because the copper price moves daily, we charge the difference with the current DEL quotation separately as a copper surcharge. That keeps the cable price stable and shows exactly what you pay for copper.

Copper weight
0.526 kg/m
DEL quotation
1258.23 €/100 kg · 2026-08-24
Purchase costs
12.46 €/100 kg
Copper base
150 €/100 kg

Calculation

copper weight (kg/m) × ((DEL + purchase costs) − copper base) ÷ 100

The surcharge is not added to the cable price, but listed separately on the order and invoice. The quotation on the day of dispatch applies.

Source: Westmetall DEL quotation

Specifications

BrandTsubaki Kabelschlepp
SeriesPower
CategoryFlexible cables
Number of cores4
Cross-section10 mm²
Copper weight0.526 kg/m
Weight671 kg/km
Rated voltage1000 V
Temperature range-35 tot 90 °C
Sheath materialPUR
InsulationPP / 9Y
ScreeningYes
ColourBlack
Sales unitper metre
Warranty24 months

Documentation

Free to download, no account required.

Tieme Ernst, technical advisor at Wisman Group

Questions about this article?

Tieme ErnstTechnical Advisor

  • More than 1,000 customers helped
  • Secure payment and secure handling
  • Established, recognised company since 1975
sales@wisman-group.com

About the Power series

All Power series articles

Flexible power cables for cable carriers: finely stranded copper, wear-resistant jacket, millions of cycles.

Power cables from our range are designed for continuous motion in a cable carrier. Finely stranded copper conductors, smooth core wrapping, and a wear-resistant PUR or PVC outer jacket ensure the cable withstands millions of carrier bending cycles without conductor breakage.

We supply them cut to length from the reel and can install them directly into the cable carrier, complete with strain relief. This ensures the cable never falls below its minimum bend radius.

Key strengths

  • Designed for continuous motion in cable carriers
  • Finely stranded copper and smooth core wrapping to prevent conductor breakage
  • Oil and wear-resistant PUR outer jacket available
  • Supplied cut to length or pre-installed in the carrier

Typical applications

  • Motor and power cables on linear axes
  • Gantry cranes and handling systems
  • Machine tools with coolant and oil exposure
  • High-cycle packaging lines
