+ € 8,75 per meter copper surcharge (excl. btw)
How the copper surcharge worksIn stock — ships today

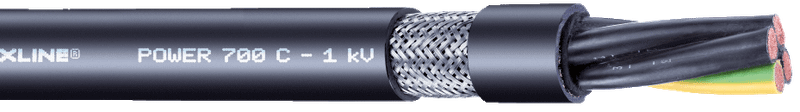

The Tsubaki Kabelschlepp POWER 700 C PUR 4X16² is a high-performance shielded flexible cable constructed with 4 cores of 16 mm² and Polypropylene (PP) insulation. Encased in a durable black Polyurethane (PUR) outer jacket, this cable features effective shielding to protect against electromagnetic interference in demanding industrial environments.
- Number of cores
- 4
- Cross-section
- 16 mm²
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The Tsubaki Kabelschlepp POWER 700 C PUR 4X16² is a high-performance shielded flexible cable constructed with 4 cores of 16 mm² and Polypropylene (PP) insulation. Encased in a durable black Polyurethane (PUR) outer jacket, this cable features effective shielding to protect against electromagnetic interference in demanding industrial environments.
Suitable for dynamic applications, the cable operates within a wide temperature range of -35 °C to 90 °C at a nominal voltage of 1000 V. It is halogen-free and complies with rigorous international standards, including cURus AWM Style 20234, UL 1581 VW1, and EN 60332-1-2 flame retardancy specifications.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
45804
43 in stock
€ 27,64per meter · excl. btw
+ € 8,75 per meter copper surcharge
- Secure online payment
- Free shipping from € 250,00
- Technical support
How does the copper surcharge work?
Cable prices are based on a fixed copper base. Because the copper price moves daily, we charge the difference with the current DEL quotation separately as a copper surcharge. That keeps the cable price stable and shows exactly what you pay for copper.
- Copper weight
- 0.781 kg/m
- DEL quotation
- 1258.23 €/100 kg · 2026-08-24
- Purchase costs
- 12.46 €/100 kg
- Copper base
- 150 €/100 kg
Calculation
copper weight (kg/m) × ((DEL + purchase costs) − copper base) ÷ 100
The surcharge is not added to the cable price, but listed separately on the order and invoice. The quotation on the day of dispatch applies.
Source: Westmetall DEL quotationSpecifications
| Brand | Tsubaki Kabelschlepp |
|---|---|
| Series | Power |
| Category | Flexible cables |
| Number of cores | 4 |
| Cross-section | 16 mm² |
| Copper weight | 0.781 kg/m |
| Weight | 1050 kg/km |
| Rated voltage | 1000 V |
| Temperature range | -35 tot 90 °C |
| Sheath material | PUR |
| Insulation | PP |
| Screening | Ja |
| Colour | Black |
| Sales unit | meter |
| Warranty | 24 months |
