+ € 12,83 per meter copper surcharge (excl. btw)
How the copper surcharge worksNot in stock — delivery in 2–3 weeks

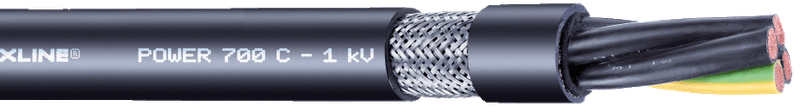

The Tsubaki Kabelschlepp POWER 700C PUR 4X25² is a high-performance shielded flexible cable designed for demanding dynamic applications. It features 4 cores with a cross-section of 25 mm² and PP/9Y core insulation, all protected by a robust black PUR outer jacket. With a rated voltage of 1000 V, a copper weight of 1.145 kg/m, and an overall weight of 1522 kg/km, it delivers reliable power transmission.
- Number of cores
- 4
- Cross-section
- 25 mm²
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The Tsubaki Kabelschlepp POWER 700C PUR 4X25² is a high-performance shielded flexible cable designed for demanding dynamic applications. It features 4 cores with a cross-section of 25 mm² and PP/9Y core insulation, all protected by a robust black PUR outer jacket. With a rated voltage of 1000 V, a copper weight of 1.145 kg/m, and an overall weight of 1522 kg/km, it delivers reliable power transmission.
Built to withstand harsh industrial environments, this cable operates efficiently within a temperature range of -35 °C to 90 °C. It complies with strict international standards, including cURus AWM Style 20234 and EN 60332-1-2, ensuring excellent oil resistance, flame retardance, and halogen-free properties.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
45805
Delivery in 2-3 weeks
€ 36,29per meter · excl. btw
+ € 12,83 per meter copper surcharge
- Secure online payment
- Free shipping from € 250,00
- Technical support
How does the copper surcharge work?
Cable prices are based on a fixed copper base. Because the copper price moves daily, we charge the difference with the current DEL quotation separately as a copper surcharge. That keeps the cable price stable and shows exactly what you pay for copper.
- Copper weight
- 1.145 kg/m
- DEL quotation
- 1258.23 €/100 kg · 2026-08-24
- Purchase costs
- 12.46 €/100 kg
- Copper base
- 150 €/100 kg
Calculation
copper weight (kg/m) × ((DEL + purchase costs) − copper base) ÷ 100
The surcharge is not added to the cable price, but listed separately on the order and invoice. The quotation on the day of dispatch applies.
Source: Westmetall DEL quotationSpecifications
| Brand | Tsubaki Kabelschlepp |
|---|---|
| Series | Power |
| Category | Flexible cables |
| Number of cores | 4 |
| Cross-section | 25 mm² |
| Copper weight | 1.145 kg/m |
| Weight | 1522 kg/km |
| Rated voltage | 1000 V |
| Temperature range | -35 tot 90 °C |
| Sheath material | PUR |
| Insulation | PP/9Y |
| Screening | Ja |
| Colour | Black |
| Sales unit | meter |
| Warranty | 24 months |
