+ € 1,17 per meter copper surcharge (excl. btw)
How the copper surcharge worksNot in stock — delivery in 2–3 weeks

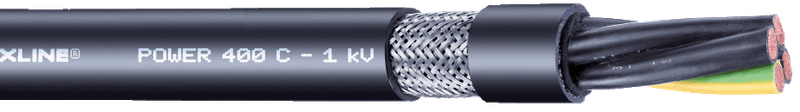

The Tsubaki Kabelschlepp POWER 400C 4X1.5² is a high-performance shielded flexible cable equipped with 4 cores of 1.5 mm². Built with PP/9Y core insulation and a durable black PVC outer sheath, this power cable ensures reliable operation under continuous flexing. It operates safely within a temperature range of -5 °C to 80 °C and supports a minimum bending radius starting from 7.5 x Ø, making it ideal for demanding industrial environments.
- Number of cores
- 4
- Cross-section
- 1.5 mm²
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The Tsubaki Kabelschlepp POWER 400C 4X1.5² is a high-performance shielded flexible cable equipped with 4 cores of 1.5 mm². Built with PP/9Y core insulation and a durable black PVC outer sheath, this power cable ensures reliable operation under continuous flexing. It operates safely within a temperature range of -5 °C to 80 °C and supports a minimum bending radius starting from 7.5 x Ø, making it ideal for demanding industrial environments.
Designed to meet strict international standards, including UL, EN, and VDE specifications, this cable offers proven flame, oil, and ozone resistance. With a rated voltage of 0.6/1.0 kV, a total weight of 165 kg/km, and a copper weight of 0.1040 kg/m, it delivers exceptional durability and safe power transmission in dynamic continuous-motion installations.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
47202
Delivery in 2-3 weeks
€ 4,19per meter · excl. btw
+ € 1,17 per meter copper surcharge
- Secure online payment
- Free shipping from € 250,00
- Technical support
How does the copper surcharge work?
Cable prices are based on a fixed copper base. Because the copper price moves daily, we charge the difference with the current DEL quotation separately as a copper surcharge. That keeps the cable price stable and shows exactly what you pay for copper.
- Copper weight
- 0.104 kg/m
- DEL quotation
- 1258.23 €/100 kg · 2026-08-24
- Purchase costs
- 12.46 €/100 kg
- Copper base
- 150 €/100 kg
Calculation
copper weight (kg/m) × ((DEL + purchase costs) − copper base) ÷ 100
The surcharge is not added to the cable price, but listed separately on the order and invoice. The quotation on the day of dispatch applies.
Source: Westmetall DEL quotationSpecifications
| Brand | Tsubaki Kabelschlepp |
|---|---|
| Series | Power |
| Category | Flexible cables |
| Number of cores | 4 |
| Cross-section | 1.5 mm² |
| Copper weight | 0.1040 kg/m |
| Weight | 165 kg/km |
| Rated voltage | 1000 V |
| Temperature range | -5 tot 80 °C |
| Sheath material | PVC |
| Insulation | PP/9Y |
| Screening | Ja |
| Colour | Black |
| Sales unit | meter |
| Warranty | 24 months |
