Tsubaki Kabelschlepp · Power

Flexible cable - Tsubaki Kabelschlepp - Power - 5G6mm²

47253Delivery in 2-3 weeks
€ 10,61excl. VAT · per metre

€ 12,84 incl. VAT

+ € 4,92 per metre copper surcharge (excl. VAT)

How the copper surcharge works

Not in stock — delivery in 2–3 weeks

Free and without obligation · Reply within 3 hours on working days
Datasheet

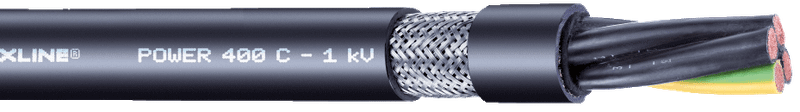

The Tsubaki Kabelschlepp POWER 400C (5G6²) is a high-performance shielded flexible cable featuring 5 cores with a 6 mm² cross-section. Constructed with PP/9Y core insulation and a durable black PVC outer sheath, this cable provides reliable power transmission at a nominal voltage of 1000 V. It features a copper weight of 0.4390 kg/m and a total weight of 558 kg/km.

Number of cores
5
Cross-section
6 mm²
  • Ordered before 15:00, shipped the same day
  • Datasheet and STEP file instantly available

Product description

The Tsubaki Kabelschlepp POWER 400C (5G6²) is a high-performance shielded flexible cable featuring 5 cores with a 6 mm² cross-section. Constructed with PP/9Y core insulation and a durable black PVC outer sheath, this cable provides reliable power transmission at a nominal voltage of 1000 V. It features a copper weight of 0.4390 kg/m and a total weight of 558 kg/km.

Designed for dynamic industrial applications, this flexible cable supports up to 4 million bending cycles within an operating temperature range of -5 °C to 80 °C. It meets stringent international standards, including cURus AWM Style 2570, EN 60332-1-2 flame resistance, UL 1581 VW1, and specific VDE and DIN EN norms for oil and UV resistance.

How does the copper surcharge work?

Cable prices are based on a fixed copper base. Because the copper price moves daily, we charge the difference with the current DEL quotation separately as a copper surcharge. That keeps the cable price stable and shows exactly what you pay for copper.

Copper weight
0.439 kg/m
DEL quotation
1258.23 €/100 kg · 2026-08-24
Purchase costs
12.46 €/100 kg
Copper base
150 €/100 kg

Calculation

copper weight (kg/m) × ((DEL + purchase costs) − copper base) ÷ 100

The surcharge is not added to the cable price, but listed separately on the order and invoice. The quotation on the day of dispatch applies.

Source: Westmetall DEL quotation

Specifications

BrandTsubaki Kabelschlepp
SeriesPower
CategoryFlexible cables
Number of cores5
Cross-section6 mm²
Copper weight0.4390 kg/m
Weight558 kg/km
Rated voltage1000 V
Temperature range-5 tot 80 °C
Sheath materialPVC
InsulationPP / 9Y
ScreeningYes
ColourBlack
Sales unitper metre
Warranty24 months

Documentation

Free to download, no account required.

Tieme Ernst, technical advisor at Wisman Group

Questions about this article?

Tieme ErnstTechnical Advisor

  • More than 1,000 customers helped
  • Secure payment and secure handling
  • Established, recognised company since 1975
sales@wisman-group.com

About the Power series

All Power series articles

Flexible power cables for cable carriers: finely stranded copper, wear-resistant jacket, millions of cycles.

Power cables from our range are designed for continuous motion in a cable carrier. Finely stranded copper conductors, smooth core wrapping, and a wear-resistant PUR or PVC outer jacket ensure the cable withstands millions of carrier bending cycles without conductor breakage.

We supply them cut to length from the reel and can install them directly into the cable carrier, complete with strain relief. This ensures the cable never falls below its minimum bend radius.

Key strengths

  • Designed for continuous motion in cable carriers
  • Finely stranded copper and smooth core wrapping to prevent conductor breakage
  • Oil and wear-resistant PUR outer jacket available
  • Supplied cut to length or pre-installed in the carrier

Typical applications

  • Motor and power cables on linear axes
  • Gantry cranes and handling systems
  • Machine tools with coolant and oil exposure
  • High-cycle packaging lines
