+ € 5,83 per meter copper surcharge (excl. btw)
How the copper surcharge worksNot in stock — delivery in 2–3 weeks

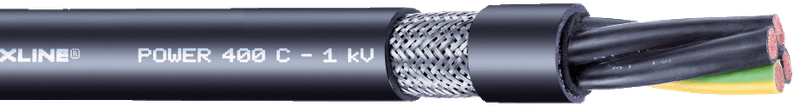

The Tsubaki Kabelschlepp POWER 400C 4X10² features four Class 6 conductors with a cross-section of 10 mm² and PP insulation. It is equipped with an overall shield to ensure high electromagnetic compatibility. The robust outer sheath is made of black PVC, protecting the inner core in dynamic industrial environments while maintaining flex life.
- Number of cores
- 4
- Cross-section
- 10 mm²
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The Tsubaki Kabelschlepp POWER 400C 4X10² features four Class 6 conductors with a cross-section of 10 mm² and PP insulation. It is equipped with an overall shield to ensure high electromagnetic compatibility. The robust outer sheath is made of black PVC, protecting the inner core in dynamic industrial environments while maintaining flex life.
This high-quality flexible cable operates at a nominal voltage of 0.6/1.0 kV (UL 1.0 kV) and functions reliably within a temperature range of -5 °C to +80 °C when in motion. Manufactured in compliance with strict international standards, including cURus AWM Style 2570 and EN 60332-1-2, it offers excellent flame resistance and dependable performance for demanding applications.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
47262
Delivery in 2-3 weeks
€ 12,52per meter · excl. btw
+ € 5,83 per meter copper surcharge
- Secure online payment
- Free shipping from € 250,00
- Technical support
How does the copper surcharge work?
Cable prices are based on a fixed copper base. Because the copper price moves daily, we charge the difference with the current DEL quotation separately as a copper surcharge. That keeps the cable price stable and shows exactly what you pay for copper.
- Copper weight
- 0.52 kg/m
- DEL quotation
- 1258.23 €/100 kg · 2026-08-24
- Purchase costs
- 12.46 €/100 kg
- Copper base
- 150 €/100 kg
Calculation
copper weight (kg/m) × ((DEL + purchase costs) − copper base) ÷ 100
The surcharge is not added to the cable price, but listed separately on the order and invoice. The quotation on the day of dispatch applies.
Source: Westmetall DEL quotationSpecifications
| Brand | Tsubaki Kabelschlepp |
|---|---|
| Series | Power |
| Category | Flexible cables |
| Number of cores | 4 |
| Cross-section | 10 mm² |
| Copper weight | 0.5200 kg/m |
| Weight | 701 kg/km |
| Rated voltage | 600/1000 V |
| Temperature range | -5 tot 80 °C |
| Sheath material | PVC |
| Insulation | PP |
| Screening | Ja |
| Colour | Black |
| Sales unit | meter |
| Warranty | 24 months |
