+ € 3,14 per meter copper surcharge (excl. btw)
How the copper surcharge worksNot in stock — delivery in 2–3 weeks

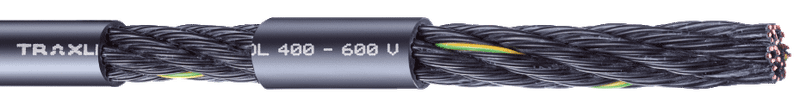

The CONTROL 400 600V 18G1.5² by Tsubaki Kabelschlepp is a high-quality unshielded flexible cable. It features 18 PP-insulated cores of 1.5 mm², including a green/yellow earth conductor and black numbered cores. The cable is protected by a robust black PVC outer jacket and has an overall weight of 462 kg/km with a copper weight of 0.2800 kg/m.
- Number of cores
- 18
- Cross-section
- 1.5 mm²
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The CONTROL 400 600V 18G1.5² by Tsubaki Kabelschlepp is a high-quality unshielded flexible cable. It features 18 PP-insulated cores of 1.5 mm², including a green/yellow earth conductor and black numbered cores. The cable is protected by a robust black PVC outer jacket and has an overall weight of 462 kg/km with a copper weight of 0.2800 kg/m.
Suitable for dynamic industrial applications, this cable operates reliably within a temperature range of -5 °C to 80 °C. It is oil, UV, and ozone resistant, flame retardant, and free from silicone and FCKW. Compliant with strict international standards including cURus AWM Style 2570, EN 60332-1-2, and UL 1581 VW1.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
48058
Delivery in 2-3 weeks
€ 6,91per meter · excl. btw
+ € 3,14 per meter copper surcharge
- Secure online payment
- Free shipping from € 250,00
- Technical support
How does the copper surcharge work?
Cable prices are based on a fixed copper base. Because the copper price moves daily, we charge the difference with the current DEL quotation separately as a copper surcharge. That keeps the cable price stable and shows exactly what you pay for copper.
- Copper weight
- 0.28 kg/m
- DEL quotation
- 1258.23 €/100 kg · 2026-08-24
- Purchase costs
- 12.46 €/100 kg
- Copper base
- 150 €/100 kg
Calculation
copper weight (kg/m) × ((DEL + purchase costs) − copper base) ÷ 100
The surcharge is not added to the cable price, but listed separately on the order and invoice. The quotation on the day of dispatch applies.
Source: Westmetall DEL quotationSpecifications
| Series | Tsubaki Kabelschlepp |
|---|---|
| Category | Flexible cables |
| Number of cores | 18 |
| Cross-section | 1.5 mm² |
| Copper weight | 0.2800 kg/m |
| Weight | 462 kg/km |
| Rated voltage | 600 V |
| Temperature range | -5 tot 80 °C |
| Sheath material | PVC |
| Insulation | PP |
| Screening | Nee |
| Colour | Black |
| Sales unit | meter |
| Warranty | 24 months |
