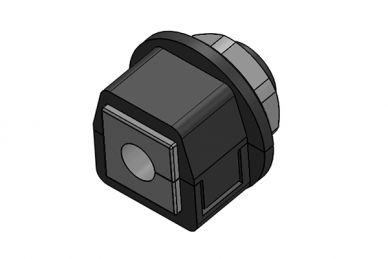

Split cable gland - Icotek - KVT-M

KVT-M 20-ZIn stock
€ 8,53-15%€ 7,25excl. VAT · per piece

€ 8,77 incl. VAT

In stock — ships today

Volume

1+ per piece€ 7,25
10+ per piece€ 6,89 -5%
15+ per piece€ 6,71 -8%
20+ per piece€ 6,53 -10%
Free and without obligation · Reply within 3 hours on working days

The Icotek KVT-M 20-Z from the KVT-M series is a high-quality split cable gland manufactured from polycarbonate (PC). Designed to accommodate one small grommet, this model provides reliable sealing with an IP54 protection rating. It features an outer diameter of Ø 40 mm and a mounting dimension of Ø 20.5 mm (M20).

Installation dimension
Ø 20,5 mm (M20)
IP rating
IP54
Material
Polycarbonaat (PC)
  • Ordered before 15:00, shipped the same day
  • Datasheet and STEP file instantly available

Product description

The Icotek KVT-M 20-Z from the KVT-M series is a high-quality split cable gland manufactured from polycarbonate (PC). Designed to accommodate one small grommet, this model provides reliable sealing with an IP54 protection rating. It features an outer diameter of Ø 40 mm and a mounting dimension of Ø 20.5 mm (M20).

With an operating temperature range from -30°C to +100°C, this black cable gland is suitable for versatile industrial requirements. Weighing just 0.018 kg net, it offers a compact and efficient cable routing solution.

Specifications

BrandIcotek
SeriesKVT-M
CategorySplit cable glands
ColourBlack
MaterialPolycarbonaat (PC)
Installation dimensionØ 20,5 mm (M20)
IP ratingIP54
Temperatuur-30°C / +100°C
UitvoeringKlein 1 | Groot 0
DiameterØ 40 mm
Weight0.018
HS code85472000
Sales unitper piece
Warranty24 months
