+ € 0,49 per meter copper surcharge (excl. btw)
How the copper surcharge worksNot in stock — delivery in 2–3 weeks

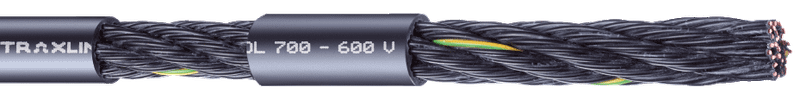

The Tsubaki Kabelschlepp CONTROL 700 4X1² features class 6 copper conductors with 4 cores of 1 mm² and high-grade PP/9Y core insulation. Protected by a robust black PUR outer jacket, this unshielded flexible cable has a nominal voltage rating of 300/500 V, a copper weight of 0.044 kg/m, and an overall weight of 82 kg/km.
- Number of cores
- 4
- Cross-section
- 1 mm²
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The Tsubaki Kabelschlepp CONTROL 700 4X1² features class 6 copper conductors with 4 cores of 1 mm² and high-grade PP/9Y core insulation. Protected by a robust black PUR outer jacket, this unshielded flexible cable has a nominal voltage rating of 300/500 V, a copper weight of 0.044 kg/m, and an overall weight of 82 kg/km.
Designed specifically for use in drag chains, this cable is halogen-free, UV-resistant, and oil-resistant. It reliably operates within a broad temperature range of -35 °C to +90 °C and meets extensive international standards, including cURus AWM Style 20939, flame-retardant EN 60332-1-2, and DIN EN 60811-2-1 compliance.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
45442
Delivery in 2-3 weeks
€ 2,86per meter · excl. btw
+ € 0,49 per meter copper surcharge
- Secure online payment
- Free shipping from € 250,00
- Technical support
How does the copper surcharge work?
Cable prices are based on a fixed copper base. Because the copper price moves daily, we charge the difference with the current DEL quotation separately as a copper surcharge. That keeps the cable price stable and shows exactly what you pay for copper.
- Copper weight
- 0.044 kg/m
- DEL quotation
- 1258.23 €/100 kg · 2026-08-24
- Purchase costs
- 12.46 €/100 kg
- Copper base
- 150 €/100 kg
Calculation
copper weight (kg/m) × ((DEL + purchase costs) − copper base) ÷ 100
The surcharge is not added to the cable price, but listed separately on the order and invoice. The quotation on the day of dispatch applies.
Source: Westmetall DEL quotationSpecifications
| Brand | Tsubaki Kabelschlepp |
|---|---|
| Series | Control |
| Category | Flexible cables |
| Number of cores | 4 |
| Cross-section | 1 mm² |
| Copper weight | 0.044 kg/m |
| Weight | 82 kg/km |
| Rated voltage | 300/500 V |
| Temperature range | -35 tot 90 °C |
| Sheath material | PUR |
| Insulation | PP/9Y |
| Screening | Nee |
| Colour | Black |
| Applications | Kabelrupsen |
| Sales unit | meter |
| Warranty | 24 months |
