+ € 0,72 per meter copper surcharge (excl. btw)
How the copper surcharge worksNot in stock — delivery in 2–3 weeks

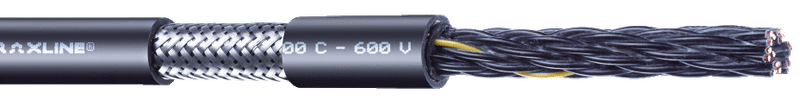

The Tsubaki Kabelschlepp CONTROL 700C (7G0.5²) is a high-performance shielded flexible cable engineered for demanding dynamic applications. It consists of 7 conductors with a cross-section of 0.5 mm², polypropylene (PP) insulation, and a robust black PUR outer jacket. This construction ensures reliable signal transmission and optimal protection against external electromagnetic interference.
- Number of cores
- 7
- Cross-section
- 0.5 mm²
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The Tsubaki Kabelschlepp CONTROL 700C (7G0.5²) is a high-performance shielded flexible cable engineered for demanding dynamic applications. It consists of 7 conductors with a cross-section of 0.5 mm², polypropylene (PP) insulation, and a robust black PUR outer jacket. This construction ensures reliable signal transmission and optimal protection against external electromagnetic interference.
Designed to withstand harsh environments, this cable operates efficiently within a broad temperature range of -35 °C to 90 °C at a nominal voltage of 500 V. It complies with rigorous international standards, including cURus AWM Style 20939, EN 60332-1-2, and UL 1581 VW1, guaranteeing exceptional flame resistance and overall durability.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
45705
Delivery in 2-3 weeks
€ 8,72per meter · excl. btw
+ € 0,72 per meter copper surcharge
- Secure online payment
- Free shipping from € 250,00
- Technical support
How does the copper surcharge work?
Cable prices are based on a fixed copper base. Because the copper price moves daily, we charge the difference with the current DEL quotation separately as a copper surcharge. That keeps the cable price stable and shows exactly what you pay for copper.
- Copper weight
- 0.064 kg/m
- DEL quotation
- 1258.23 €/100 kg · 2026-08-24
- Purchase costs
- 12.46 €/100 kg
- Copper base
- 150 €/100 kg
Calculation
copper weight (kg/m) × ((DEL + purchase costs) − copper base) ÷ 100
The surcharge is not added to the cable price, but listed separately on the order and invoice. The quotation on the day of dispatch applies.
Source: Westmetall DEL quotationSpecifications
| Brand | Tsubaki Kabelschlepp |
|---|---|
| Series | Control |
| Category | Flexible cables |
| Number of cores | 7 |
| Cross-section | 0.5 mm² |
| Copper weight | 0.064 kg/m |
| Weight | 130 kg/km |
| Rated voltage | 500 V |
| Temperature range | -35 tot 90 °C |
| Sheath material | PUR |
| Insulation | PP |
| Screening | true |
| Colour | Black |
| Sales unit | meter |
| Warranty | 24 months |
Documentation
Free to download, no account required.
