Tsubaki Kabelschlepp · Control
Flexible cable - Tsubaki Kabelschlepp - Control - 12G1mm²
€ 3,69 incl. VAT
+ € 1,95 per metre copper surcharge (excl. VAT)
How the copper surcharge worksNot in stock — delivery in 2–3 weeks

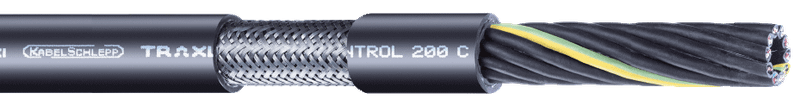

The Tsubaki Kabelschlepp CONTROL 200C is a high-quality shielded flexible cable designed for dynamic applications. It features 12 conductors with a cross-section of 1.0 mm² (including one green/yellow conductor). The cable is constructed with polypropylene (PP) core insulation, an overall copper shield, and a durable black PVC outer sheath. It complies with various international standards, such as cURus AWM Style 2464, EN 60332-1-2, and UL 1581 VW1 flame resistance rating.
- Number of cores
- 12
- Cross-section
- 1 mm²
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The Tsubaki Kabelschlepp CONTROL 200C is a high-quality shielded flexible cable designed for dynamic applications. It features 12 conductors with a cross-section of 1.0 mm² (including one green/yellow conductor). The cable is constructed with polypropylene (PP) core insulation, an overall copper shield, and a durable black PVC outer sheath. It complies with various international standards, such as cURus AWM Style 2464, EN 60332-1-2, and UL 1581 VW1 flame resistance rating.
Suitable for moving applications up to 2 million bending cycles, this cable operates reliably within a temperature range of -5 °C to +80 °C. Rated at a nominal voltage of 300/500 V, it offers excellent signal protection against electromagnetic interference due to its shielded design.
How does the copper surcharge work?
Cable prices are based on a fixed copper base. Because the copper price moves daily, we charge the difference with the current DEL quotation separately as a copper surcharge. That keeps the cable price stable and shows exactly what you pay for copper.
- Copper weight
- 0.174 kg/m
- DEL quotation
- 1258.23 €/100 kg · 2026-08-24
- Purchase costs
- 12.46 €/100 kg
- Copper base
- 150 €/100 kg
Calculation
copper weight (kg/m) × ((DEL + purchase costs) − copper base) ÷ 100
The surcharge is not added to the cable price, but listed separately on the order and invoice. The quotation on the day of dispatch applies.
Source: Westmetall DEL quotationSpecifications
| Brand | Tsubaki Kabelschlepp |
|---|---|
| Series | Control |
| Category | Flexible cables |
| Number of cores | 12 |
| Cross-section | 1 mm² |
| Copper weight | 0.174 kg/m |
| Weight | 232 kg/km |
| Rated voltage | 300 / 500 V |
| Temperature range | -5 to 80 °C |
| Sheath material | PVC |
| Insulation | PP |
| Screening | Yes |
| Colour | Black |
| Sales unit | per metre |
| Warranty | 24 months |
Documentation
Free to download, no account required.
Questions about this article?
Tieme ErnstTechnical Advisor
- More than 1,000 customers helped
- Secure payment and secure handling
- Established, recognised company since 1975
About the Control series
All Control series articlesFlexible control cables for cable carriers: high core count, shielded or unshielded, flex-resistant.
Control cables connect sensors, valves and controllers to the control cabinet and move thousands of times daily in the cable carrier. Our range consists of fine-stranded control cables with and without shielding, featuring a jacket resistant to oil, coolant and wear.
All types are available by the metre and can be fitted directly into the cable carrier upon request, complete with dividers to keep power and control cables separated.
Key strengths
- Core counts from 2 to 42 for every control application
- Shielded versions to prevent interference from frequency inverters
- Wear-resistant, oil-resistant jacket
- Separated installation of power and control cables in the carrier
Typical applications
- Sensor and actuator cabling on moving axes
- Control of grippers and handling modules
- Machine tools and robot cells
- Measuring and test systems
