+ € 2,19 per meter copper surcharge (excl. btw)
How the copper surcharge worksNot in stock — delivery in 2–3 weeks

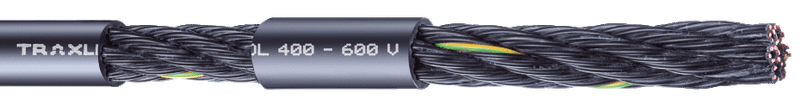

The Tsubaki Kabelschlepp CONTROL 400 600V 25X0,75² is a high-quality flexible control cable designed for dynamic applications, such as cable carrier systems. This unshielded cable features 25 cores with a cross-section of 0.75 mm², polypropylene (PP) core insulation, and a durable black PVC outer jacket. With a nominal voltage rating of 600 V, it operates reliably within a temperature range of -5 °C to +80 °C.
- Number of cores
- 25
- Cross-section
- 0.75 mm²
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The Tsubaki Kabelschlepp CONTROL 400 600V 25X0,75² is a high-quality flexible control cable designed for dynamic applications, such as cable carrier systems. This unshielded cable features 25 cores with a cross-section of 0.75 mm², polypropylene (PP) core insulation, and a durable black PVC outer jacket. With a nominal voltage rating of 600 V, it operates reliably within a temperature range of -5 °C to +80 °C.
Engineered for demanding industrial environments, this cable complies with multiple international standards, including cURus AWM Style 2570, EN 60332-1-2, UL 1581 VW1, and CSA C22.2 No. 210-05 FT1. Weighing 362 kg/km with a copper weight of 0.1950 kg/m, it provides a dependable solution for continuous movement in machinery and equipment.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
48045
Delivery in 2-3 weeks
€ 8,27per meter · excl. btw
+ € 2,19 per meter copper surcharge
- Secure online payment
- Free shipping from € 250,00
- Technical support
How does the copper surcharge work?
Cable prices are based on a fixed copper base. Because the copper price moves daily, we charge the difference with the current DEL quotation separately as a copper surcharge. That keeps the cable price stable and shows exactly what you pay for copper.
- Copper weight
- 0.195 kg/m
- DEL quotation
- 1258.23 €/100 kg · 2026-08-24
- Purchase costs
- 12.46 €/100 kg
- Copper base
- 150 €/100 kg
Calculation
copper weight (kg/m) × ((DEL + purchase costs) − copper base) ÷ 100
The surcharge is not added to the cable price, but listed separately on the order and invoice. The quotation on the day of dispatch applies.
Source: Westmetall DEL quotationSpecifications
| Brand | Tsubaki Kabelschlepp |
|---|---|
| Series | Control |
| Category | Flexible cables |
| Number of cores | 25 |
| Cross-section | 0.75 mm² |
| Copper weight | 0.1950 kg/m |
| Weight | 362 kg/km |
| Rated voltage | 600 V |
| Temperature range | -5 tot 80 °C |
| Sheath material | PVC |
| Insulation | PP |
| Screening | false |
| Colour | Black |
| Sales unit | meter |
| Warranty | 24 months |
