+ € 0,33 per meter copper surcharge (excl. btw)
How the copper surcharge worksNot in stock — delivery in 2–3 weeks

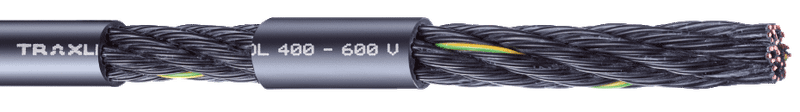

The CONTROL 400 600V 3X1.0² from Tsubaki Kabelschlepp is a high-quality unshielded flexible cable consisting of 3 cores with a 1.0 mm² cross-section, including one yellow/green core. The cable is constructed with PP insulation and a robust black PVC outer jacket. Designed with a rated voltage up to 600V, it features a copper weight of 0.0290 kg/m and a total weight of 65 kg/km.
- Number of cores
- 3
- Cross-section
- 1.0 mm²
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The CONTROL 400 600V 3X1.0² from Tsubaki Kabelschlepp is a high-quality unshielded flexible cable consisting of 3 cores with a 1.0 mm² cross-section, including one yellow/green core. The cable is constructed with PP insulation and a robust black PVC outer jacket. Designed with a rated voltage up to 600V, it features a copper weight of 0.0290 kg/m and a total weight of 65 kg/km.
Suitable for various industrial applications, this control cable supports a flexible temperature range from -5 °C to +80 °C. It is resistant to flames, oil, ozone, and UV radiation. The cable complies with multiple strict standards, including cURus AWM Style 2570, EN 60332-1-2, UL 1581 VW1, and CSA C22.2 No. 210-05 FT1.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
48046
Delivery in 2-3 weeks
€ 1,12per meter · excl. btw
+ € 0,33 per meter copper surcharge
- Secure online payment
- Free shipping from € 250,00
- Technical support
How does the copper surcharge work?
Cable prices are based on a fixed copper base. Because the copper price moves daily, we charge the difference with the current DEL quotation separately as a copper surcharge. That keeps the cable price stable and shows exactly what you pay for copper.
- Copper weight
- 0.029 kg/m
- DEL quotation
- 1258.23 €/100 kg · 2026-08-24
- Purchase costs
- 12.46 €/100 kg
- Copper base
- 150 €/100 kg
Calculation
copper weight (kg/m) × ((DEL + purchase costs) − copper base) ÷ 100
The surcharge is not added to the cable price, but listed separately on the order and invoice. The quotation on the day of dispatch applies.
Source: Westmetall DEL quotationSpecifications
| Brand | Tsubaki Kabelschlepp |
|---|---|
| Series | Control |
| Category | Flexible cables |
| Number of cores | 3 |
| Cross-section | 1.0 mm² |
| Copper weight | 0.0290 kg/m |
| Weight | 65 kg/km |
| Rated voltage | 600 V |
| Temperature range | -5 tot 80 °C |
| Sheath material | PVC |
| Insulation | PP/9Y |
| Screening | Nee |
| Colour | Black |
| Sales unit | meter |
| Warranty | 24 months |
