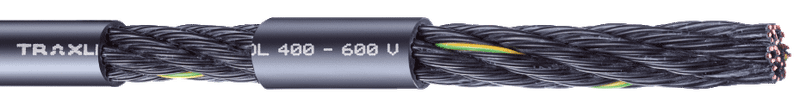

The Tsubaki Kabelschlepp CONTROL 400 600V features 18 cores of 1 mm² with PP/9Y insulation and a durable black PVC outer jacket. This unshielded flexible cable is engineered for reliable signal and power transmission, offering a nominal voltage rating of 600 V and a temperature operating range from -5 °C up to +80 °C.
- Number of cores
- 18
- Cross-section
- 1 mm²
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The Tsubaki Kabelschlepp CONTROL 400 600V features 18 cores of 1 mm² with PP/9Y insulation and a durable black PVC outer jacket. This unshielded flexible cable is engineered for reliable signal and power transmission, offering a nominal voltage rating of 600 V and a temperature operating range from -5 °C up to +80 °C.
Designed for dynamic continuous motion applications, this cable withstands up to 4 million bending cycles in energy chains. It complies with major international standards, including cURus AWM Style 2570, EN 60332-1-2 flame resistance, and RoHS directive 2011/65/EG, ensuring high performance in industrial environments.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
48051
Delivery in 2-3 weeks
€ 4,95per meter · excl. btw
+ € 2,10 per meter copper surcharge
- Secure online payment
- Free shipping from € 250,00
- Technical support
How does the copper surcharge work?
Cable prices are based on a fixed copper base. Because the copper price moves daily, we charge the difference with the current DEL quotation separately as a copper surcharge. That keeps the cable price stable and shows exactly what you pay for copper.
- Copper weight
- 0.187 kg/m
- DEL quotation
- 1258.23 €/100 kg · 2026-08-24
- Purchase costs
- 12.46 €/100 kg
- Copper base
- 150 €/100 kg
Calculation
copper weight (kg/m) × ((DEL + purchase costs) − copper base) ÷ 100
The surcharge is not added to the cable price, but listed separately on the order and invoice. The quotation on the day of dispatch applies.
Source: Westmetall DEL quotationSpecifications
| Brand | Tsubaki Kabelschlepp |
|---|---|
| Series | Control |
| Category | Flexible cables |
| Number of cores | 18 |
| Cross-section | 1 mm² |
| Copper weight | 0.1870 kg/m |
| Weight | 322 kg/km |
| Rated voltage | 600 V |
| Temperature range | -5 °C up to 80 °C °C |
| Sheath material | PVC |
| Insulation | PP/9Y |
| Screening | Unshielded |
| Colour | Black |
| Sales unit | meter |
| Warranty | 24 months |
