Reiku · Polyamide 11 BIO

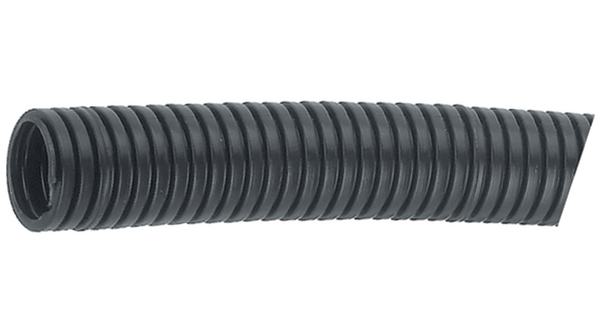

Cable protection conduit - Reiku - Polyamide 11, BIO

BIO-RRB-17FIn stock
€ 7,17excl. VAT · per metre

€ 8,68 incl. VAT

In stock — ships today

Volume

1+ per metre€ 7,17
10+ per metre€ 6,81 -5%
15+ per metre€ 6,63 -8%
20+ per metre€ 6,45 -10%
Free and without obligation · Reply within 3 hours on working days
Datasheet

The Reiku Polyamide 11, BIO cable protection conduit is specially designed for robotics applications. This conduit features a fine profile and a nominal width of NW17. The material is manufactured from bio-based Polyamide 11 derived from castor oil. The conduit is black and has a weight of 5.5 kg per 100 meters.

Nominal size (NW)
17 NW
Material
Polyamide 11, Bio (Op kaster olie basis)
Dynamic bend radius
80 mm
  • Ordered before 15:00, shipped the same day
  • Datasheet and STEP file instantly available

Product description

The Reiku Polyamide 11, BIO cable protection conduit is specially designed for robotics applications. This conduit features a fine profile and a nominal width of NW17. The material is manufactured from bio-based Polyamide 11 derived from castor oil. The conduit is black and has a weight of 5.5 kg per 100 meters.

The protection conduit has a static radius of 30 mm and a dynamic radius of 80 mm. With a temperature range of -40°C to +135°C for both static and dynamic use, this Reiku conduit offers a suitable solution for cable protection in robotics.

Specifications

BrandReiku
SeriesPolyamide 11 BIO
CategoryCable protection hoses
MaterialPolyamide 11, Bio (Op kaster olie basis)
ColourBlack
Nominal size (NW)17 NW
Profile typeFine
Static bend radius30 mm
Dynamic bend radius80 mm
Weight5,5 kg/100 m
ApplicationsRobots
Temperature range dynamic-40°C -+135°C
Temperature range static-40°C -+135°C
Sales unitper metre
OriginGermany
Warranty24 months

Documentation

Free to download, no account required.

Tieme Ernst, technical advisor at Wisman Group

Questions about this article?

Tieme ErnstTechnical Advisor

  • More than 1,000 customers helped
  • Secure payment and secure handling
  • Established, recognised company since 1975
sales@wisman-group.com

About the Polyamide 11 BIO series

All Polyamide 11 BIO series articles

Bio-based protective conduit made from castor oil: the properties of PA12 with a lower environmental impact.

Polyamide 11 BIO is produced from castor oil instead of crude oil, making it the sustainable choice among protective conduits. Technically, the material is close to PA12: low moisture absorption, high flexibility at low temperatures and good chemical resistance.

The conduit is halogen-free and fits the same connectors as PA6 and PA12. For companies looking to reduce their carbon footprint or improve sustainability reporting without compromising on cable protection, this is the logical step.

Key strengths

  • Raw material based on castor oil, not crude oil
  • Properties comparable to PA12
  • Low moisture absorption and good low-temperature flexibility
  • Interchangeable with existing connectors

Typical applications

  • Machinery with end-customer sustainability requirements
  • Outdoor and wet applications
  • Food and packaging industry
  • Projects with CO₂ reporting
