In stock — ships today
The Icotek KEL-DPU 24/13 polypropylene cable entry plate provides a reliable solution for cable routing. Featuring cut-out dimensions of 36 x 112mm, a width of 147 mm, and a height of 58 mm, it is designed to operate in temperatures ranging from -40°C to +100°C.
- Bend radius
- —
- Pitch
- 0 mm
- Outer height
- 58 mm
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description

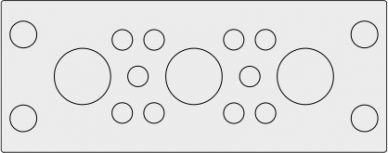

The Icotek KEL-DPU 24/13 polypropylene cable entry plate provides a reliable solution for cable routing. Featuring cut-out dimensions of 36 x 112mm, a width of 147 mm, and a height of 58 mm, it is designed to operate in temperatures ranging from -40°C to +100°C.
This cable entry plate offers a clamping range of 10x 3.2-6.3 / 3x 16-20.5mm. With an IP66 and IP68 rating, it ensures high ingress protection for demanding industrial applications.
The KEL-DPU 24/13 supports both screw mounting and snap-in installation. With a depth of 14 mm and a net weight of 0.111 kg, it is a versatile and compact solution.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
KEL-DPU 24/13
19 in stock
€ 31,37per stuks · excl. btw
Volume: 10+ € 29,80 (5%) · 15+ € 29,02 (8%) · 20+ € 28,23 (10%)
- Secure online payment
- Free shipping from € 250,00
- Technical support
Specifications
| Brand | Icotek |
|---|---|
| Series | KEL-DPU |
| Category | kabeldoorvoeren-doorvoerplaten |
| Inner height | 0 mm |
| Inner width | 0 mm |
| Outer height | 58 mm |
| Outer width | 147 mm |
| Bend radius | — |
| Pitch | 0 mm |
| Material | — |
| Temperature range | — |
| Max. fill weight | 0.5 kg/m |
| Own weight | 0.2 kg/m |
| Sales unit | stuks |
| Origin | Germany |
| Warranty | 24 months |
| Colour | gray |
| Material | polypropylene-pp |
| Height | 58 mm |
| Installation dimension | 36 x 112mm |
| IP rating | IP66, IP68 |
| Width | 147 mm |
| Depth | 14 mm |
| Klembereik | 10x 3.2-6.3 / 3x 16-20.5mm |
| Temperatuur | -40°C / +100°C |
| Weight | 0.111 |
| Montage | Schroefbevestiging, Snap-in |
| HS code | 85472000 |
