Icotek · KEL-DPU

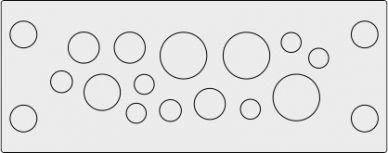

Cable entry plate - Icotek - KEL-DPU

KEL-DPU 24/14In stock
€ 31,62-15%€ 26,88excl. VAT · per piece

€ 32,52 incl. VAT

In stock — ships today

Volume

1+ per piece€ 26,88
10+ per piece€ 25,54 -5%
15+ per piece€ 24,86 -8%
20+ per piece€ 24,19 -10%
Free and without obligation · Reply within 3 hours on working days

The Icotek KEL-DPU 24/14 is a high-quality cable cable entry plate designed for space-saving cable routing. Manufactured from elastomer and polypropylene, this gray plate ensures reliable sealing with IP66 and IP68 ratings. It features outer dimensions of 147 mm width and 58 mm height, with a cut-out size of 36 x 112 mm.

Installation dimension
36 x 112mm
IP rating
IP66, IP68
Material
Elastomeer / Polypropyleen
  • Ordered before 15:00, shipped the same day
  • Datasheet and STEP file instantly available

Product description

The Icotek KEL-DPU 24/14 is a high-quality cable cable entry plate designed for space-saving cable routing. Manufactured from elastomer and polypropylene, this gray plate ensures reliable sealing with IP66 and IP68 ratings. It features outer dimensions of 147 mm width and 58 mm height, with a cut-out size of 36 x 112 mm.

This cable entry plate accommodates 14 cables across various clamping ranges: 5x 3.2-6.3 mm, 2x 4-7.5 mm, 3x 5.5-10.5 mm, 1x 8-12.5 mm, and 3x 12-16.2 mm. Installation is flexible via screw mounting or snap-in. It operates reliably in temperatures ranging from -40°C to +100°C.

Specifications

BrandIcotek
SeriesKEL-DPU
CategoryEntry plates
ColourGrey
MaterialElastomeer / Polypropyleen
Height58 mm
Installation dimension36 x 112mm
IP ratingIP66, IP68
Width147 mm
Depth14 mm
Klembereik5x 3.2-6.3 / 2x 4-7.5 / 3x 5.5-10.5 / 1x 8-12.5 / 3x 12-16.2mm
Temperatuur-40°C / +100°C
Weight0.113
MontageSchroefbevestiging, Snap-in
HS code85472000
Sales unitper piece
Warranty24 months
