In stock — ships today

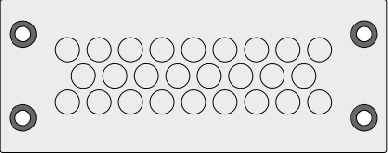

The Icotek KEL-DPZ 24/26 is a durable cable entry plate from the KEL-DPZ series. Manufactured from elastomer, polyamide (PA), and stainless steel, this gray plate measures 147 mm in width, 58 mm in height, and 14 mm in depth. It is designed for a cut-out dimension of 36 x 112 mm.
- Bend radius
- —
- Pitch
- 0 mm
- Outer height
- 58 mm
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The Icotek KEL-DPZ 24/26 is a durable cable entry plate from the KEL-DPZ series. Manufactured from elastomer, polyamide (PA), and stainless steel, this gray plate measures 147 mm in width, 58 mm in height, and 14 mm in depth. It is designed for a cut-out dimension of 36 x 112 mm.
Providing protection ratings from IP54 up to IP66, this cable entry system ensures high reliability. It operates effectively in temperature ranges from -40°C to +100°C and installs easily using screw mounting.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
KEL-DPZ 24/26
2 in stock
€ 24,10per stuks · excl. btw
Volume: 10+ € 22,90 (5%) · 15+ € 22,29 (8%) · 20+ € 21,69 (10%)
- Secure online payment
- Free shipping from € 250,00
- Technical support
Specifications
| Brand | Icotek |
|---|---|
| Series | KEL-DPZ |
| Category | kabeldoorvoeren-doorvoerplaten |
| Inner height | 0 mm |
| Inner width | 0 mm |
| Outer height | 58 mm |
| Outer width | 147 mm |
| Bend radius | — |
| Pitch | 0 mm |
| Material | — |
| Temperature range | — |
| Max. fill weight | 0.5 kg/m |
| Own weight | 0.2 kg/m |
| Sales unit | stuks |
| Origin | Germany |
| Warranty | 24 months |
| Colour | gray |
| Material | Elastomeer, Polyamide (PA) / RVS |
| Height | 58 mm |
| Installation dimension | 36 x 112mm |
| IP rating | IP54, IP55, IP64, IP65, IP66 |
| Width | 147 mm |
| Depth | 14 mm |
| Temperatuur | -40°C / +100°C |
| Weight | 0.094 |
| Montage | Schroefbevestiging |
| HS code | 85472000 |
