KEL-DPZ — Icotek
KEL-DPZ by Icotek: the complete entry plates series, available from stock.
All 18 articles of the KEL-DPZ are listed below with full technical data. This entry plates series can be ordered online; Not sure about the right size or bend radius? Our engineers are happy to calculate your application.
18 articles in this seriesAll entry plates
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file with every article
- Technical advice from a design engineer
18 articles

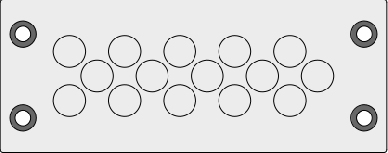

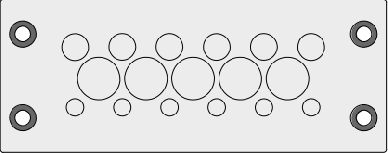

KEL-DPZ 24/121Cable entry plate - Icotek - KEL-DPZ
Icotek · Series KEL-DPZ
- Installation dimension 36 x 112mm
- IP rating IP54, IP55, IP64, IP65, IP66
- Material Elastomeer, Polyamide (PA) / RVS
- Colour Grey
20 in stock
€ 24,10-15%
€ 20,49per stuks · excl. btw
10+ stuks: € 19,47 · 15+ stuks: € 18,95 · 20+ stuks: € 18,44
KEL-DPZ 24/14-ZCable entry plate - Icotek - KEL-DPZ
Icotek · Series KEL-DPZ
- Installation dimension 36 x 112mm
- IP rating IP54, IP55, IP64, IP65, IP66
- Material Elastomeer, Polyamide (PA) / RVS
- Colour Black
16 in stock
€ 24,10-15%
€ 20,49per stuks · excl. btw
10+ stuks: € 19,47 · 15+ stuks: € 18,95 · 20+ stuks: € 18,44
KEL-DPZ 24/15Cable entry plate - Icotek - KEL-DPZ
Icotek · Series KEL-DPZ
- Installation dimension 36 x 112mm
- IP rating IP54, IP55, IP64, IP65, IP66
- Material Elastomeer, Polyamide (PA) / RVS
- Colour Grey
25 in stock
€ 24,10-15%
€ 20,49per stuks · excl. btw
10+ stuks: € 19,47 · 15+ stuks: € 18,95 · 20+ stuks: € 18,44
KEL-DPZ 24/16Cable entry plate - Icotek - KEL-DPZ
Icotek · Series KEL-DPZ
- Installation dimension 36 x 112mm
- IP rating IP54, IP55, IP64, IP65, IP66
- Material plastic; stainless-steel
- Colour Grey
14 in stock
€ 24,10-15%
€ 20,49per stuks · excl. btw
10+ stuks: € 19,47 · 15+ stuks: € 18,95 · 20+ stuks: € 18,44
KEL-DPZ 24/16-ZCable entry plate - Icotek - KEL-DPZ
Icotek · Series KEL-DPZ
- Installation dimension 36 x 112mm
- IP rating IP54, IP55, IP64, IP65, IP66
- Material Elastomeer, Polyamide (PA) / RVS
- Colour Black
8 in stock
€ 24,10-15%
€ 20,49per stuks · excl. btw
10+ stuks: € 19,47 · 15+ stuks: € 18,95 · 20+ stuks: € 18,44
KEL-DPZ 24/17Cable entry plate - Icotek - KEL-DPZ
Icotek · Series KEL-DPZ
- Installation dimension 36 x 112mm
- IP rating IP54, IP55, IP64, IP65, IP66
- Material plastic; stainless-steel
- Colour Grey
2 in stock
€ 24,10-15%
€ 20,49per stuks · excl. btw
10+ stuks: € 19,47 · 15+ stuks: € 18,95 · 20+ stuks: € 18,44
KEL-DPZ 24/26Cable entry plate - Icotek - KEL-DPZ
Icotek · Series KEL-DPZ
- Installation dimension 36 x 112mm
- IP rating IP54, IP55, IP64, IP65, IP66
- Material Elastomeer, Polyamide (PA) / RVS
- Colour Grey
2 in stock
€ 24,10-15%
€ 20,49per stuks · excl. btw
10+ stuks: € 19,47 · 15+ stuks: € 18,95 · 20+ stuks: € 18,44
KEL-DPZ 24/42Cable entry plate - Icotek - KEL-DPZ
Icotek · Series KEL-DPZ
- Installation dimension 36 x 112mm
- IP rating IP54, IP55, IP64, IP65, IP66
- Material Elastomeer, Polyamide (PA) / RVS
- Colour Grey
7 in stock
€ 24,10-15%
€ 20,49per stuks · excl. btw
10+ stuks: € 19,47 · 15+ stuks: € 18,95 · 20+ stuks: € 18,44

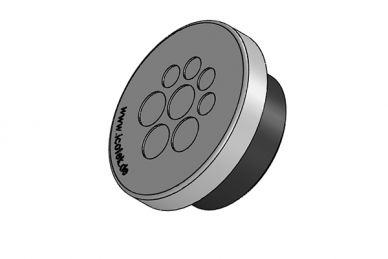

KEL-DPZ 32/04Cable entry plate - Icotek - KEL-DPZ
Icotek · Series KEL-DPZ
- Installation dimension Ø 32,5 mm (M32)
- IP rating IP54, IP55, IP64, IP65, IP66, IP67, IP68
- Material Elastomeer, Polyamide (PA)
- Colour Grey
10 in stock
€ 9,14-15%
€ 7,77per stuks · excl. btw
10+ stuks: € 7,38 · 15+ stuks: € 7,19 · 20+ stuks: € 6,99
KEL-DPZ 40/08Cable entry plate - Icotek - KEL-DPZ
Icotek · Series KEL-DPZ
- Installation dimension Ø 40,5 mm (M40)
- IP rating IP54, IP55, IP64, IP65, IP66, IP67, IP68
- Material Elastomeer, Polyamide (PA)
- Colour Grey
2 in stock
€ 10,16-15%
€ 8,64per stuks · excl. btw
10+ stuks: € 8,21 · 15+ stuks: € 7,99 · 20+ stuks: € 7,78
KEL-DPZ 50/08Cable entry plate - Icotek - KEL-DPZ
Icotek · Series KEL-DPZ
- Installation dimension Ø 50,5 mm (M50)
- IP rating IP54, IP55, IP64, IP65, IP66, IP67, IP68
- Material Elastomeer, Polyamide (PA)
- Colour Grey
7 in stock
€ 11,78-15%
€ 10,01per stuks · excl. btw
10+ stuks: € 9,51 · 15+ stuks: € 9,26 · 20+ stuks: € 9,01
KEL-DPZ 50/12Cable entry plate - Icotek - KEL-DPZ
Icotek · Series KEL-DPZ
- Installation dimension Ø 50,5 mm (M50)
- IP rating IP54, IP55, IP64, IP65, IP66, IP67, IP68
- Material Elastomeer, Polyamide (PA)
- Colour Grey
3 in stock
€ 11,69-15%
€ 9,94per stuks · excl. btw
10+ stuks: € 9,44 · 15+ stuks: € 9,19 · 20+ stuks: € 8,95
Frequently asked questions
The questions our technical desk receives most often about this category.
How do I choose the right size of entry plates?
Start with the fill: the thickest cable sets the minimum inner height, the sum of all diameters plus 10% clearance sets the inner width. Then pick a bend radius of at least ten times the thickest cable diameter. Filter on those three values on the left and only suitable articles remain.
What is the lead time and when do you ship?
Articles marked 'in stock' ship the same working day when ordered before 15:00 CET. Articles 'on request' are made to order at the manufacturer; the lead time is stated in the quotation, typically 5 to 15 working days.
Do I get technical documentation and CAD files?
Yes. Every article lists a datasheet, a manual and a STEP file for your 3D model. All are free to download, no account required.
Are the prices volume prices?
The price shown is per unit. From the indicated tier quantity onwards the lower price applies automatically and is calculated in the cart. Use the toggle at the top to show prices including or excluding VAT.
