Wisman Group

Separators

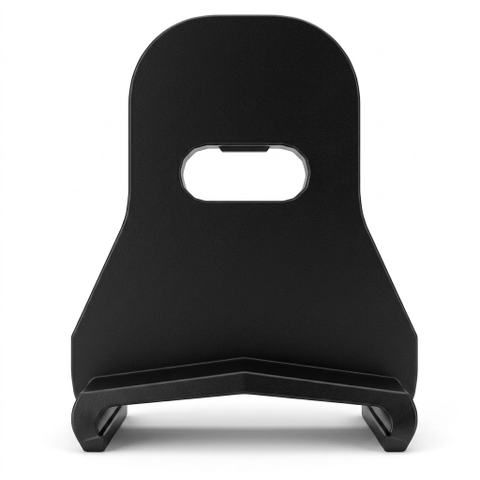

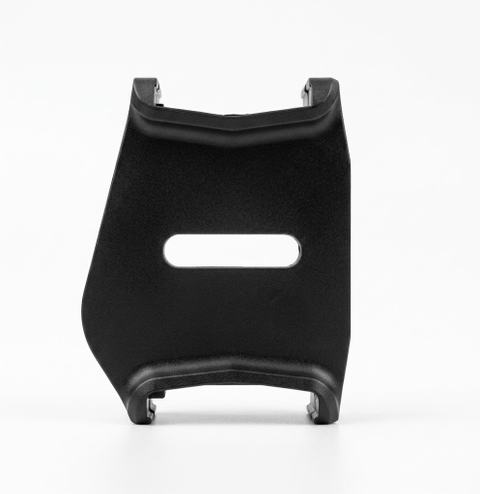

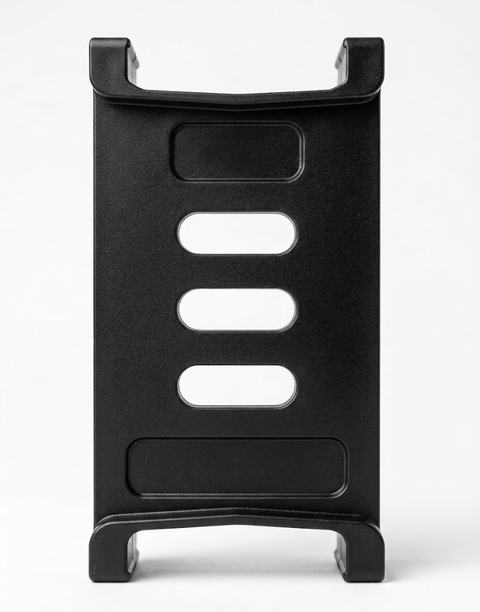

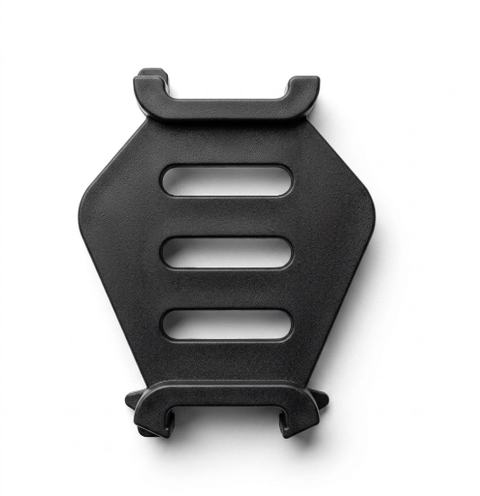

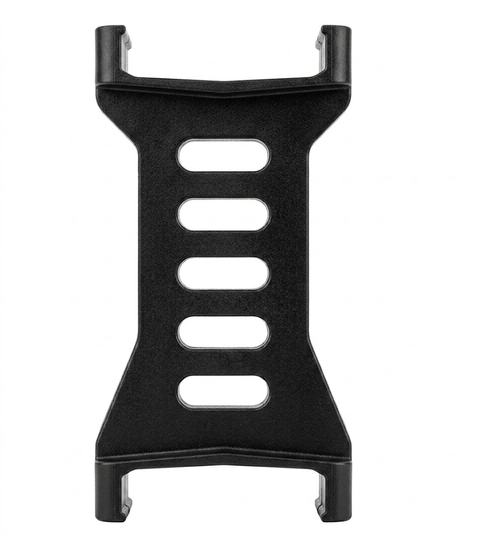

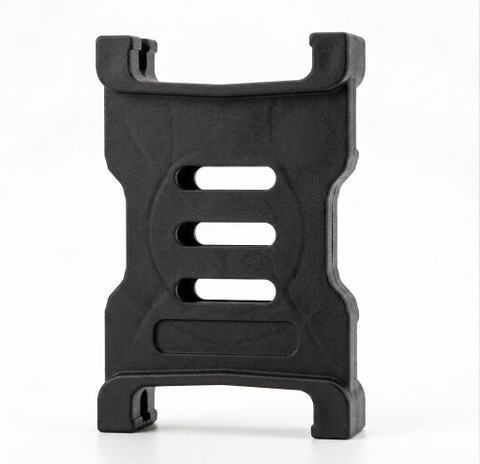

Separator stays and dividers for Tsubaki Kabelschlepp cable carriers.

Separators divide the inner space of a cable carrier into fixed chambers so cables and hoses cannot slide over each other and chafe. Pick the separator that matches the series and inner height of your cable carrier; the stays click into the crossbars of the chain.

  • Ordered before 15:00, shipped the same day
  • Datasheet and STEP file with every article
  • Technical advice from a design engineer

Accessories for cable carriers

These accessories belong to the cable carriers: pick the same series and inner size as your chain.

10 articles

All about separators

Technical guidance from our engineers: how to choose, what to measure and where installations fail in practice.

Why core separation is not optional

Without separators, cables slide over each other on every stroke. That causes jacket wear, twisted bundles and eventually conductor breakage — the failure pattern we see most often. Fixed chambers keep every cable in its own lane, keep the fill ratio predictable and let you keep power and signal physically apart for EMC.

Laying out the chambers

Give each cable a chamber slightly wider than its outer diameter and distribute weight symmetrically across the width so the carrier does not run skewed. Put fluid-carrying hoses at the bottom, signal cables at the top and as far from power cables as possible. With multiple layers, use horizontal shelves so the bottom layer does not carry the full weight of the one above.

Series in separators

Every series has its own page with the full size range, technical data and documentation.

Frequently asked questions

The questions our technical desk receives most often about this category.

How do I choose the right size of separators?

Start with the fill: the thickest cable sets the minimum inner height, the sum of all diameters plus 10% clearance sets the inner width. Then pick a bend radius of at least ten times the thickest cable diameter. Filter on those three values on the left and only suitable articles remain.

What is the lead time and when do you ship?

Articles marked 'in stock' ship the same working day when ordered before 15:00 CET. Articles 'on request' are made to order at the manufacturer; the lead time is stated in the quotation, typically 5 to 15 working days.

Do I get technical documentation and CAD files?

Yes. Every article lists a datasheet, a manual and a STEP file for your 3D model. All are free to download, no account required.

Are the prices volume prices?

The price shown is per unit. From the indicated tier quantity onwards the lower price applies automatically and is calculated in the cart. Use the toggle at the top to show prices including or excluding VAT.

Didn't find what you were looking for?

We'll prepare a tailored quote. Fill in the quote form and you'll receive a matching quote by email within 3 hours on working days.

Request a quote

Also known as

These products go by several names in the market. If you searched for any of these terms, you are in the right place:

  • separator
  • divider
  • chamber divider
  • core separation
  • shelf for cable carrier
