In stock — ships today

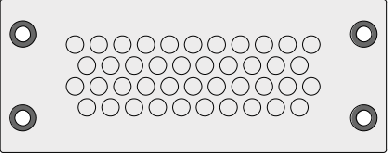

The Icotek KEL-DPZ 24/42 is a high-quality cable entry from the KEL-DPZ series, manufactured from elastomer, polyamide (PA), and stainless steel. This product measures 147 mm in width, 58 mm in height, and 14 mm in depth. It is designed for a cut-out dimension of 36 x 112mm and installs easily via screw mounting.
- Bend radius
- —
- Pitch
- 0 mm
- Outer height
- 58 mm
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The Icotek KEL-DPZ 24/42 is a high-quality cable entry from the KEL-DPZ series, manufactured from elastomer, polyamide (PA), and stainless steel. This product measures 147 mm in width, 58 mm in height, and 14 mm in depth. It is designed for a cut-out dimension of 36 x 112mm and installs easily via screw mounting.
Featuring IP ratings ranging from IP54, IP55, IP64, IP65 to IP66, this gray component delivers reliable sealing. It operates within a temperature range of -40°C to +100°C and has a net weight of 0.095 kg.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
KEL-DPZ 24/42
7 in stock
€ 24,10per stuks · excl. btw
Volume: 10+ € 22,90 (5%) · 15+ € 22,29 (8%) · 20+ € 21,69 (10%)
- Secure online payment
- Free shipping from € 250,00
- Technical support
Specifications
| Brand | Icotek |
|---|---|
| Series | KEL-DPZ |
| Category | kabeldoorvoeren-frames |
| Inner height | 0 mm |
| Inner width | 0 mm |
| Outer height | 58 mm |
| Outer width | 147 mm |
| Bend radius | — |
| Pitch | 0 mm |
| Material | — |
| Temperature range | — |
| Max. fill weight | 0.5 kg/m |
| Own weight | 0.2 kg/m |
| Sales unit | stuks |
| Origin | Germany |
| Warranty | 24 months |
| Colour | gray |
| Material | Elastomeer, Polyamide (PA) / RVS |
| Height | 58 mm |
| Installation dimension | 36 x 112mm |
| IP rating | IP54, IP55, IP64, IP65, IP66 |
| Width | 147 mm |
| Depth | 14 mm |
| Temperatuur | -40°C / +100°C |
| Weight | 0.095 |
| Montage | Schroefbevestiging |
| HS code | 85472000 |
