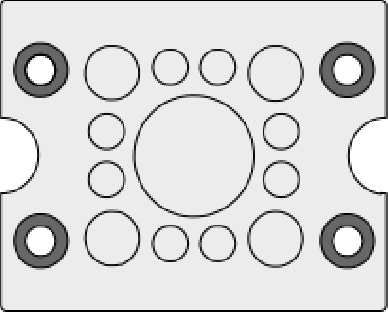

The Icotek KEL-DPZ B13 cable entry plate is designed for space-saving routing of cables. Featuring external dimensions of 72.8 mm width by 58 mm height and a cut-out size of 46 x 46 mm, it fits perfectly in compact enclosures. Manufactured from elastomer and polyamide (PA) with stainless steel, it comes in a gray finish.
- Bend radius
- —
- Pitch
- 0 mm
- Outer height
- 58 mm
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The Icotek KEL-DPZ B13 cable entry plate is designed for space-saving routing of cables. Featuring external dimensions of 72.8 mm width by 58 mm height and a cut-out size of 46 x 46 mm, it fits perfectly in compact enclosures. Manufactured from elastomer and polyamide (PA) with stainless steel, it comes in a gray finish.
This cable entry plate offers high protection up to IP66 and operates reliably within a temperature range of -40°C to +100°C. Installation is straightforward using screw mounting. Weighing only 0.033 kg, it ensures a robust and durable sealing solution.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
KEL-DPZ B13
9 in stock
€ 14,14per stuks · excl. btw
Volume: 10+ € 13,43 (5%) · 15+ € 13,08 (8%) · 20+ € 12,73 (10%)
- Secure online payment
- Free shipping from € 250,00
- Technical support
Specifications
| Brand | Icotek |
|---|---|
| Series | KEL-DPZ |
| Category | kabeldoorvoeren-doorvoerplaten |
| Inner height | 0 mm |
| Inner width | 0 mm |
| Outer height | 58 mm |
| Outer width | 72.8 mm |
| Bend radius | — |
| Pitch | 0 mm |
| Material | — |
| Temperature range | — |
| Max. fill weight | 0.5 kg/m |
| Own weight | 0.2 kg/m |
| Sales unit | stuks |
| Origin | Germany |
| Warranty | 24 months |
| Colour | gray |
| Material | Elastomeer, Polyamide (PA) / RVS |
| Height | 58 mm |
| Installation dimension | 46 x 46mm |
| IP rating | IP54, IP55, IP64, IP65, IP66 |
| Width | 72.8 mm |
| Depth | 10 mm |
| Temperatuur | -40°C / +100°C |
| Weight | 0.033 |
| Montage | Schroefbevestiging |
| HS code | 85472000 |
Documentation
Free to download, no account required.
Frequently asked questions about this article
Answers based on the technical data of this article.
Related articles
Comparable sizes and series within the same category.
Icotek

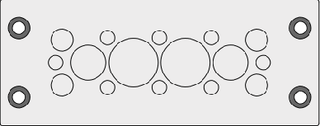

Cable entry plate - Icotek - KEL-DPZ
KEL-DPZ 24/121
20 in stock
€ 24,10excl. VAT
Icotek

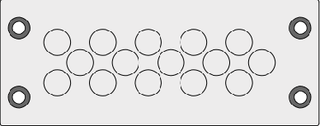

Cable entry plate - Icotek - KEL-DPZ
KEL-DPZ 24/14-Z
16 in stock
€ 24,10excl. VAT
Icotek

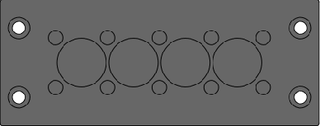

Cable entry plate - Icotek - KEL-DPZ
KEL-DPZ 24/15
25 in stock
€ 24,10excl. VAT
Icotek

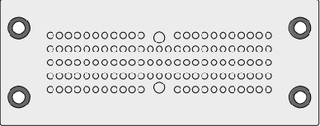

Cable entry - Icotek - KEL-DPZ
