Not in stock — delivery in 2–3 weeks

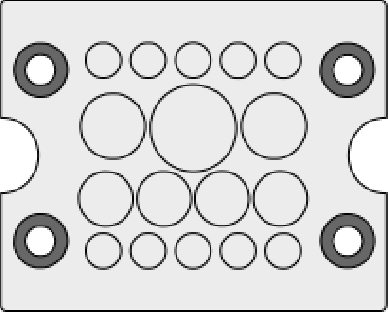

The Icotek KEL-DPZ B17 cable entry plate provides a reliable and space-saving solution for routing cables. Measuring 72.8 mm in width and 58 mm in height, it fits a cut-out dimension of 46 x 46mm. Installation is quick and secure using screw mounting.
- Bend radius
- —
- Pitch
- 0 mm
- Outer height
- 58 mm
- Ordered before 15:00, shipped the same day
- Datasheet and STEP file instantly available
Product description
The Icotek KEL-DPZ B17 cable entry plate provides a reliable and space-saving solution for routing cables. Measuring 72.8 mm in width and 58 mm in height, it fits a cut-out dimension of 46 x 46mm. Installation is quick and secure using screw mounting.
Constructed from elastomer, polyamide (PA), and stainless steel, this component ensures high ingress protection up to IP66. It operates reliably within a temperature range of -40°C to +100°C and weighs only 0.032 kg.
Order directly
Choose a size and quantity. Volume discounts are applied automatically.
KEL-DPZ B17
Delivery in 2-3 weeks
€ 14,24per stuks · excl. btw
Volume: 10+ € 13,53 (5%) · 15+ € 13,17 (8%) · 20+ € 12,82 (10%)
- Secure online payment
- Free shipping from € 250,00
- Technical support
Specifications
| Brand | Icotek |
|---|---|
| Series | KEL-DPZ |
| Category | kabeldoorvoeren-doorvoerplaten |
| Inner height | 0 mm |
| Inner width | 0 mm |
| Outer height | 58 mm |
| Outer width | 72.8 mm |
| Bend radius | — |
| Pitch | 0 mm |
| Material | — |
| Temperature range | — |
| Max. fill weight | 0.5 kg/m |
| Own weight | 0.2 kg/m |
| Sales unit | stuks |
| Origin | Germany |
| Warranty | 24 months |
| Colour | gray |
| Material | Elastomeer, Polyamide (PA) / RVS |
| Height | 58 mm |
| Installation dimension | 46 x 46mm |
| IP rating | IP54, IP55, IP64, IP65, IP66 |
| Width | 72.8 mm |
| Depth | 10 mm |
| Temperatuur | -40°C / +100°C |
| Weight | 0.032 |
| Montage | Schroefbevestiging |
| HS code | 85472000 |
