Wisman Group

Icotek · KEL-U

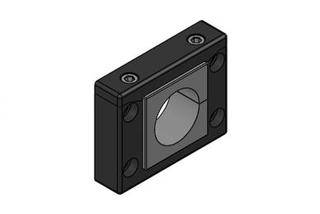

Cable entry frame - Icotek - KEL-U

KEL-U 16/05In stock
€ 16,73-15%€ 14,22excl. VAT · per piece

€ 17,21 incl. VAT

In stock — ships today

Volume

1+ per piece€ 14,22
10+ per piece€ 13,51 -5%
15+ per piece€ 13,15 -8%
20+ per piece€ 12,80 -10%
Free and without obligation · Reply within 3 hours on working days

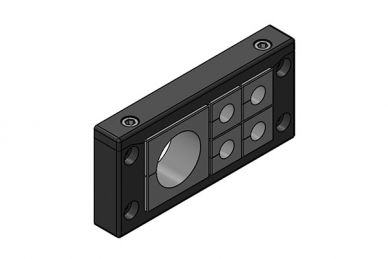

The Icotek KEL-U 16/05 cable entry frame is manufactured from high-quality black Polyamide (PA). It features external dimensions of 120 mm in width, 58 mm in height, and 17 mm in depth, with a cut-out dimension of 36 x 86 mm. Weighing just 0.094 kg, it delivers a durable and lightweight solution.

Installation dimension
36 x 86mm
IP rating
IP54
Material
Polyamide (PA)
  • Ordered before 15:00, shipped the same day
  • Datasheet and STEP file instantly available

Product description

The Icotek KEL-U 16/05 cable entry frame is manufactured from high-quality black Polyamide (PA). It features external dimensions of 120 mm in width, 58 mm in height, and 17 mm in depth, with a cut-out dimension of 36 x 86 mm. Weighing just 0.094 kg, it delivers a durable and lightweight solution.

Equipped with galvanized screws, this frame provides an IP54 protection rating. Its configuration accommodates 4 small and 1 large insert, offering a versatile arrangement for your routing needs.

Specifications

BrandIcotek
SeriesKEL-U
CategoryEntry frames
ColourBlack
MaterialPolyamide (PA)
TypeVerzinkte schroeven
Height58 mm
Installation dimension36 x 86mm
IP ratingIP54
Width120 mm
Depth17 mm
UitvoeringKlein 4 | Groot 1
Weight0.094
HS code85472000
Sales unitper piece
Warranty24 months
