Icotek · KEL-U

Cable entry frame - Icotek - KEL-U

KEL-U 16/08 RVSIn stock
€ 18,10-15%€ 15,39excl. VAT · per piece

€ 18,62 incl. VAT

In stock — ships today

Volume

1+ per piece€ 15,39
10+ per piece€ 14,62 -5%
15+ per piece€ 14,24 -8%
20+ per piece€ 13,85 -10%
Free and without obligation · Reply within 3 hours on working days

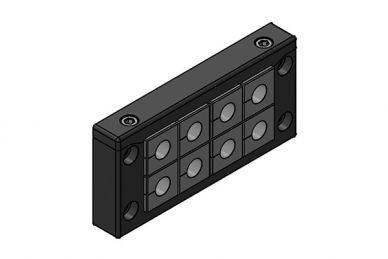

The Icotek KEL-U 16/08 RVS cable entry frame is manufactured from high-quality black Polyamide (PA). Featuring stainless steel screws, this frame requires a cut-out dimension of 36 x 86mm. It measures 120 mm in width, 58 mm in height, and 17 mm in depth.

Installation dimension
36 x 86mm
IP rating
IP54
Material
Polyamide (PA)
  • Ordered before 15:00, shipped the same day
  • Datasheet and STEP file instantly available

Product description

The Icotek KEL-U 16/08 RVS cable entry frame is manufactured from high-quality black Polyamide (PA). Featuring stainless steel screws, this frame requires a cut-out dimension of 36 x 86mm. It measures 120 mm in width, 58 mm in height, and 17 mm in depth.

Designed for 8 small grommets (large: 0), the frame provides an IP54 protection rating. Weighing only 0.098 kg, it delivers a durable and reliable cable management solution.

Specifications

BrandIcotek
SeriesKEL-U
CategoryEntry frames
ColourBlack
MaterialPolyamide (PA)
TypeRVS schroeven
Height58 mm
Installation dimension36 x 86mm
IP ratingIP54
Width120 mm
Depth17 mm
UitvoeringKlein 8 | Groot 0
Weight0.098
HS code85472000
Sales unitper piece
Warranty24 months
