What are the inner dimensions of End bracket - Tsubaki Kabelschlepp - TKA Series - 75x36mm?

The actual inner dimensions are 36 mm high and 75 mm wide. Fill the inner space up to 80% so cables and hoses can move freely.

From which quantity do I get a volume discount?

The standard volume discount is 10+ stuks: € 9,07 · 15+ stuks: € 8,83 · 20+ stuks: € 8,60 excl. VAT. The tier price is applied automatically in the cart; for project volumes we quote a sharp project price.

Is this article in stock?

This article is not in stock; lead time is 2–3 weeks. You can still add it to the cart and order on account — we confirm the exact delivery date with your order.

What is End connectors used for?

This article belongs to End connectors by Tsubaki Kabelschlepp and is used in machine building, automation and maintenance to protect and guide cables and hoses in moving applications.

You pay your order online, securely, by card or iDEAL. You can add your purchase order number at checkout.

Tsubaki Kabelschlepp · TKA Series

End bracket - Tsubaki Kabelschlepp - TKA Series - 75x36mm

Name: End bracket - Tsubaki Kabelschlepp - TKA Series - 75x36mm
Brand: Tsubaki Kabelschlepp
SKU: TKA045-075 FP
Availability: PreOrder

TKA045-075 FPDelivery in 2-3 weeks

€ 9,55excl. VAT · per piece

€ 11,56 incl. VAT

Not in stock — delivery in 2–3 weeks

Volume

1+ per piece	€ 9,55
10+ per piece	€ 9,07 -5%
15+ per piece	€ 8,83 -8%
20+ per piece	€ 8,60 -10%

Free and without obligation · Reply within 3 hours on working days

This end bracket from Tsubaki Kabelschlepp is part of the TKA Series and is designed as a fixed point bracket. The product belongs to the category end brackets.

Material: Polyamide / steel
Temperature range: −30 °C … +100 °C
Outer height: 50 mm

Ordered before 15:00, shipped the same day
Datasheet and STEP file instantly available

Specifications

Brand	Tsubaki Kabelschlepp
Series	TKA Series
Category	End connectors
Inner height	36 mm
Inner width	75 mm
Outer height	50 mm
Outer width	91 mm
Material	Polyamide / steel
Temperature range	−30 °C … +100 °C
Sales unit	per piece
Origin	Germany
Warranty	24 months

Documentation

Free to download, no account required.

CertificatesRoHS, REACH and UL declaration

Questions about this article?

Tieme ErnstTechnical Advisor

More than 1,000 customers helped
Secure payment and secure handling
Established, recognised company since 1975

sales@wisman-group.com

Frequently asked questions about this article

Answers based on the technical data of this article.

Comparable sizes and series within the same category.

Tsubaki Kabelschlepp

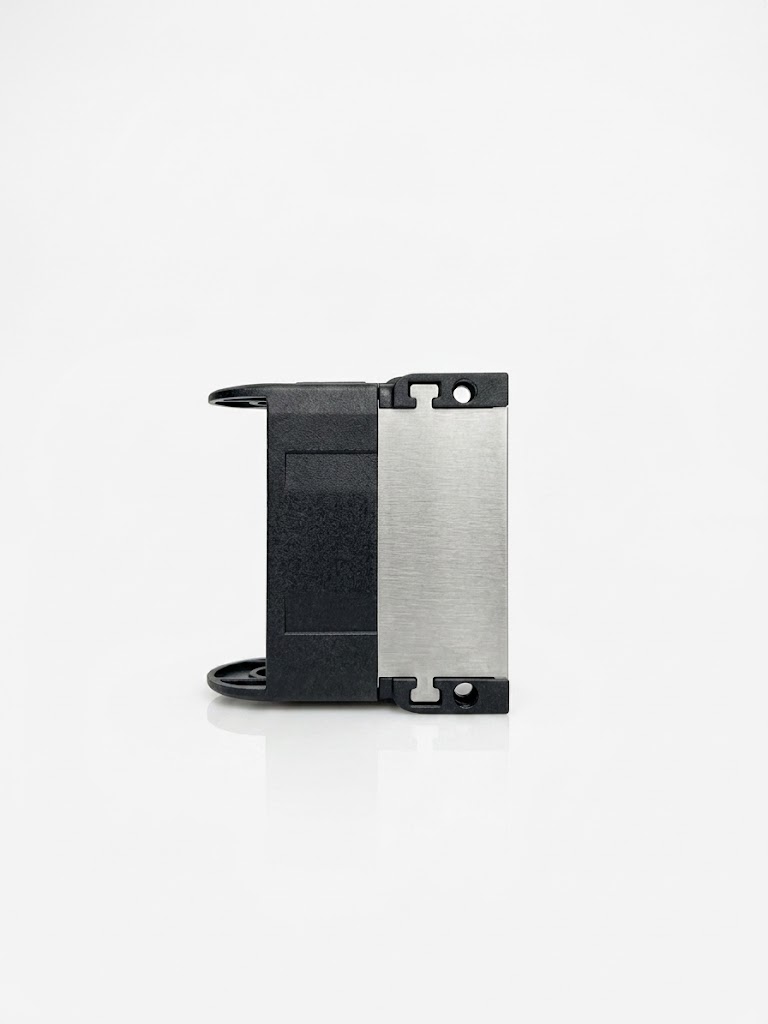

End bracket - Tsubaki Kabelschlepp - TKA Series - 78x36mm
