Tsubaki Kabelschlepp
Cable carriers, separators and end connectors from stock
Tsubaki Kabelschlepp is one of the best-known cable carrier (energy chain) manufacturers worldwide. Wisman Group supplies the plastic programme — Uniflex Advanced, EasyTrax, QuickTrax, MONO and TKA — including separators and end connectors, from stock and orderable online.
- Why order at Wisman Group
- Uniflex Advanced, EasyTrax, QuickTrax, MONO and TKA Series
- Full technical data per article: height, width, pitch, bend radius
- Separators and end connectors in the same order
- Volume discounts from 10 pieces or metres
541
Articles online
3
Product groups
5
Series
Shipped today
Stock lead time
Product range Tsubaki Kabelschlepp
Popular articles
View all

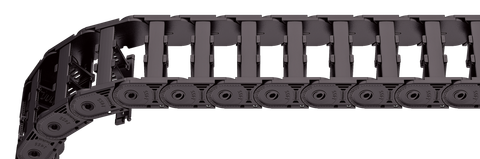

UA 1455-040-038-052Cable chain - Cable carrier - Tsubaki Kabelschlepp - Uniflex Advanced Series - 38x26mm | R52
Tsubaki Kabelschlepp · Series Uniflex Advanced Series
- Inner height 26 mm
- Inner width 38 mm
- Bend radius 52 mm
- Openable on the inside
452 in stock
€ 61,53per meter · excl. btw
10+ meter: € 58,45 · 15+ meter: € 56,92 · 20+ meter: € 55,38
1665-TS01/1.1Intermediate Divider - Tsubaki Kabelschlepp - Uniflex Advanced Series
Tsubaki Kabelschlepp · Series Uniflex Advanced Series
433 in stock
€ 0,37per stuks · excl. btw
10+ stuks: € 0,35 · 15+ stuks: € 0,34 · 20+ stuks: € 0,33
1555-TS01/1.1Intermediate Divider - Tsubaki Kabelschlepp - Uniflex Advanced Series
Tsubaki Kabelschlepp · Series Uniflex Advanced Series
358 in stock
€ 0,37per stuks · excl. btw
10+ stuks: € 0,35 · 15+ stuks: € 0,34 · 20+ stuks: € 0,33

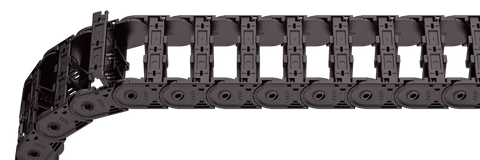

UA 1455-030-038-052Cable chain - Cable carrier - Tsubaki Kabelschlepp - Uniflex Advanced Series - 38x26mm | R52
Tsubaki Kabelschlepp · Series Uniflex Advanced Series
- Inner height 26 mm
- Inner width 38 mm
- Bend radius 52 mm
- Openable on the outside
355 in stock
€ 61,53per meter · excl. btw
10+ meter: € 58,45 · 15+ meter: € 56,92 · 20+ meter: € 55,38
1455-TS01/1.1Divider - Tsubaki Kabelschlepp - Uniflex Advanced Series
Tsubaki Kabelschlepp · Series Uniflex Advanced Series
309 in stock
€ 0,37per stuks · excl. btw
10+ stuks: € 0,35 · 15+ stuks: € 0,34 · 20+ stuks: € 0,33
0320-TS0/1 ET/QTDivider - Tsubaki Kabelschlepp - EasyTrax, QuickTrax 0320
Tsubaki Kabelschlepp · Series EasyTrax Series · QuickTrax Series
291 in stock
€ 0,37per stuks · excl. btw
10+ stuks: € 0,35 · 15+ stuks: € 0,34 · 20+ stuks: € 0,33
Tsubaki Kabelschlepp — Cable carriers, separators and end connectors from stock
A cable carrier guides cables and hoses along a moving machine axis and protects them against kinking, torsion and wear. Tsubaki Kabelschlepp builds plastic chains with a long service life, low noise level and a wide size range: from compact MONO chains for light axes to Uniflex Advanced Series with large inner widths and heavy loads.
Every article shows the full technical data: inner height and width, outer dimensions, pitch, bend radius, weight per metre and the opening side (inner or outer). That way you select the right chain without a paper catalogue and add the matching separators and end connectors straight away.
Order per metre or per piece, with automatic volume discounts from 10 units. Stocked articles ship the same working day; if you are unsure about size or bend radius, our engineers calculate your application for you.
Need help choosing?
Our engineers calculate your application and advise on the right type, size and bend radius. Call or email us, or request a quotation.
Frequently asked questions
Which Tsubaki Kabelschlepp series do I need?
It depends on the fill (cable diameters), the unsupported length and the travel speed. Short, light axes are usually served by MONO or EasyTrax; wider packages and longer travels call for Uniflex Advanced or QuickTrax. Our configurator calculates fill and bend radius for you.
Can I order Tsubaki Kabelschlepp carriers cut to length?
Yes. Order per metre or per number of links, together with the end connectors. For fully assembled systems including cables, request a quotation.
What is the lead time?
Stocked articles are shipped the same working day. Non-stock articles usually take 2–3 weeks; this is shown on every article.
Are the chains openable?
On nearly all series, yes. Each article states whether the chain opens on the inner or outer radius, so cables can be laid in without removing connectors.
