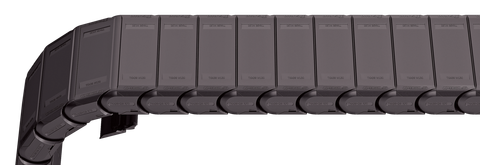

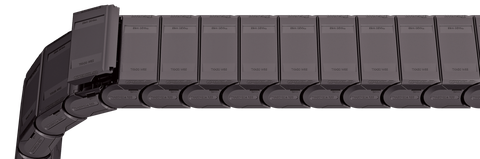

TKA Series — Tsubaki Kabelschlepp

TKA Series by Tsubaki Kabelschlepp: the complete plastic cable carriers series, available from stock.

All 19 articles of the TKA Series are listed below with full technical data. This plastic cable carriers series can be ordered online; inner height 20.5–20.5 mm, inner width 15–65 mm, bend radius 55–145 mm. Not sure about the right size or bend radius? Our engineers are happy to calculate your application.

19 articles in this seriesAll plastic cable carriers

  • Ordered before 15:00, shipped the same day
  • Datasheet and STEP file with every article
  • Technical advice from a design engineer

Configurator

Cable chain configurator

Send us your cable list and we will calculate everything for you.

Calculate my cable chain

19 articles

Frequently asked questions

The questions our technical desk receives most often about this category.

How do I choose the right size of plastic cable carriers?

Start with the fill: the thickest cable sets the minimum inner height, the sum of all diameters plus 10% clearance sets the inner width. Then pick a bend radius of at least ten times the thickest cable diameter. Filter on those three values on the left and only suitable articles remain.

What is the lead time and when do you ship?

Articles marked 'in stock' ship the same working day when ordered before 15:00 CET. Articles 'on request' are made to order at the manufacturer; the lead time is stated in the quotation, typically 5 to 15 working days.

Do I get technical documentation and CAD files?

Yes. Every article lists a datasheet, a manual and a STEP file for your 3D model. All are free to download, no account required.

Are the prices volume prices?

The price shown is per unit. From the indicated tier quantity onwards the lower price applies automatically and is calculated in the cart. Use the toggle at the top to show prices including or excluding VAT.
